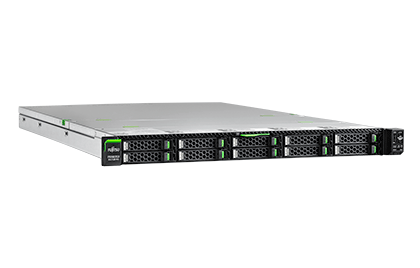

Máy chủ FUJITSU PY TX2530 M4, Silver 4116, Ram 16GB, 8x2.5"

0₫

Mô tả

Máy chủ FUJITSU PY TX2530 M4, Silver 4108, Ram 16GB, 8x2.5"

- Processors : 1x Intel Xeon Silver 4116 (2.1GHz, 12C/24T, 85W)
- Memory : 16GB (1x16GB) 1Rx4 DDR4-2666 R ECC
- Hard Drives : Option
- Drive Bays : Basic 2.5' kit (8x)
- Raid Controller : PRAID EP420i
- Network Controller : Onboard LAN 2x1 Gb/s for basic LAN and optional DynamicLoM with chipset 10Gb/s MAC
- Optical Drive : Option
- Graphics : Onboard
- Powe Supply : 1x 800W
- Form Factor : 1U


Specifications

Chipset Intel®:
 C624

Mainboard type:                D3383

Product Type:     Dual Socket Rack Server

Processor:            Intel® Xeon® Processor Scalable Family

Memory:              8 GB - 3.072 GB, DIMM (DDR4)
Memory protection:        Advanced ECC, Memory Scrubbing, SDDC, Rank sparing memory support, Memory Mirroring support

Drives (optional):              DVD supermulti, ultraslim, SATA I

PCI-Express 3.0 x8:            1 x Low profile (2nd processor required for slot 4)

PCI-Express 3.0 x1:6          3 x Low profile (2nd processor required for slot 4); 1x16 if fh slot selected

Slot Notes:          Slot 1 (internal): PCIe Gen3 x8 @CPU1 is dedicated for the modular RAID Controller.
Slot 2: PCIe Gen3 x16 @CPU1 for low profile cards with up to 167mm length
Slot 3: PCIe Gen3 x16 @CPU1 for low profile cards with up to 167mm length
Slot 4 standard: PCIe Gen3 x16 @CPU2 for low profile cards with up to 167mm length
Slot 4 option: PCIe Gen3 x16 @CPU2 for full height cards with up to 167mm length (!in this case, slot 3 is not available)

Accessible drive bays:      1 x 5.25/0.4-inch for CD-RW/DVD

Optional accessible drives:            Ultra slim 9.5mm optical drive (optional)
n/a
Not for 10 x 2.5-inch base unit. All possible options described in relevant system configurator.

Storage drive bays :          up to 8 x 2.5-inch, 10 x 2.5-inch or 4 x 3.5-inch baseunit
up to 4x 3.5" (LFF) hot plug drives (SAS/SATA)
up to 4x 2.5" (SFF) hot plug drives (SAS/SATA); option for upgrade to 8x 2.5" (SFF) hot plug drives
up to 8x 2.5" (SFF) hot plug drives (SAS/SATA)
up to 10x 2.5" (SFF) hot plug drives (SAS/SATA); thereof up to 4x bays prepared for 2.5" PCIe SSD

I/O controller onboard:   Intel® C624, 1 x SATA channel for ODD
All hardware storage controller options are described under Components
2 x 1Gbit/s onboard, Optional DynamicLoM OCP adaptors:, 4 x 1 Gbit/s Ethernet (RJ45), 2 x 10 Gbit/s Ethernet (RJ45), 2 x 10 Gbit/s SFP+, 4 x 10 Gbit/s SFP+
Integrated Remote Management Controller (iRMC S5, 512 MB attached memory incl. graphics controller), IPMI 2.0 compatible

Trusted Platform Module:  (TPM) Infineon / TPM 1.2 or TPM 2.0 module; TCG compliant (option)

Power supply configuration:         1 x hot-plug power supply or 2 x hot-plug power supply for redundancy

Active power (max. configuration):            883 W

Weight: up to 16 kg

Rack (W x D x H):               483 mm (Bezel) / 435mm (Body) x 770.7 x 43 mm

Mounting Depth Rack:     748.2 mm

Server Management:      Server Management

Option:  ServerView Suite (Maintain), ServerView eLCM, iRMC Advanced Pack incl. Advanced Video Redirection (AVR), video capturing and Virtual Media, ServerView Suite (Dynamize), ServerView Virtual IO Manager (SVIOM), Resource Orchestrator- virtual edition, Resource Orchestrator- Cloud edition
