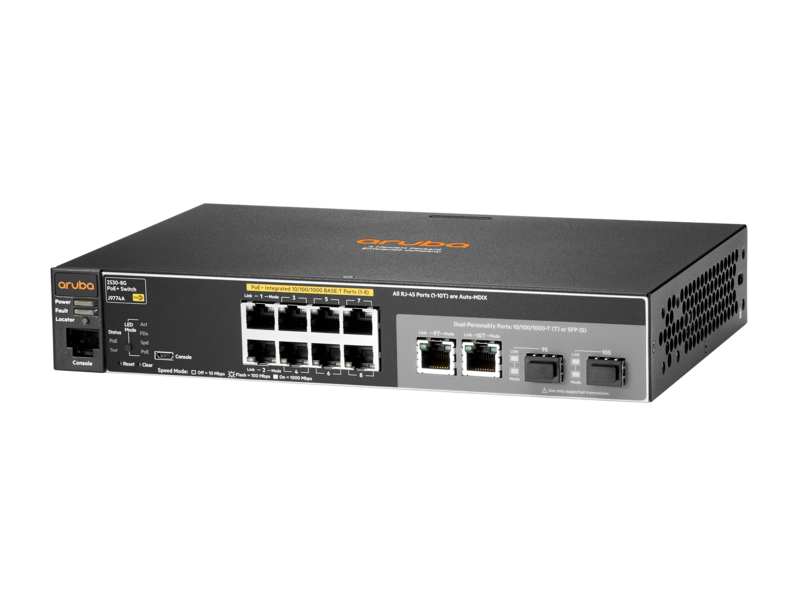

Differentiator Small-form 10-port fully managed Gigabit Layer 2 PoE+ switch. This model has 8x 10/100/1000 PoE+ enabled ports and 2x combo dual personality ports operating either as 10/100/1000 or as Gigabit SFP ports. Supports IEEE 802.3at Power over Ethernet with a PoE+ power budget of 67 Watts.
Ports (8) RJ-45 autosensing 10/100/1000 PoE+ ports (2) dual-personality ports - each port can be used as either an RJ-45 10/100/1000 port (IEEE 802.3 Type 10Base-T IEEE 802.3u Type 100Base-Tx IEEE 802.3ab 1000Base-T Gigabit Ethernet) or as a SFP slot (for use with SFP transceivers)
Mô tả
Technical Specifications
Differentiator
Small-form 10-port fully managed Gigabit Layer 2 PoE+ switch.
This model has 8x 10/100/1000 PoE+ enabled ports and 2x combo dual personality ports operating either as 10/100/1000 or as Gigabit SFP ports. Supports IEEE 802.3at Power over Ethernet with a PoE+ power budget of 67 Watts.
Ports
(8) RJ-45 autosensing 10/100/1000 PoE+ ports
(2) dual-personality ports - each port can be used as either an RJ-45 10/100/1000 port (IEEE 802.3 Type 10Base-T
IEEE 802.3u Type 100Base-Tx
IEEE 802.3ab 1000Base-T Gigabit Ethernet) or as a SFP slot (for use with SFP transceivers)
Memory and processor
ARM9E @ 800 MHz
128 MB flash
Packet buffer size: 1.5 MB dynamically allocated
256 MB DDR3 DIMM
Latency
100 Mb Latency: < 7.4 µs
1000 Mb Latency: < 2.6 µs
Throughput
up to 14.8 Mpps
Switching capacity
20 Gbps
PoE capability
67 W
Stacking capabilities
Virtual
16 switches
Management features
Aruba Central and Aruba AirWave Network Management
IMC—Intelligent Management Center
command-line interface
Web browser
configuration menu
out-of-band management (serial RS-232C or Micro USB)
IEEE 802.3 Ethernet MIB
Repeater MIB
Ethernet Interface MIB AirWave Network Management
Input voltage
100 - 127 / 200 - 240 VAC, rated
Power consumption
86 W (maximum)
Heat dissipation
65 BTU/hr (68.58 kJ/hr)
Minimum dimensions ( H x W x D)
25.4 x 15.95 x 4.45 cm
Weight
1 kg
