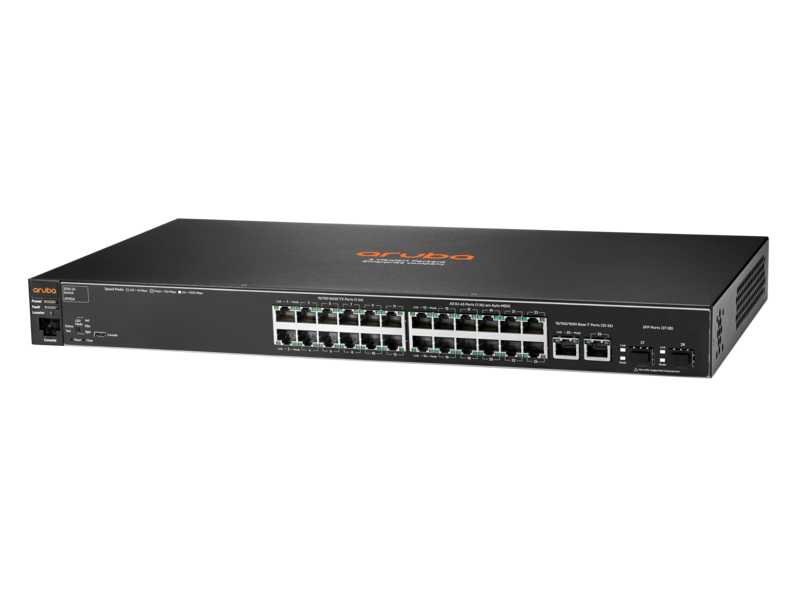

HPE Aruba 2530 24 Switch - J9782A
0₫
(Còn hàng)
HPE Aruba 2530 24 Switch - J9782ATechnical SpecificationsDifferentiator24-port fully managed Fast Ethernet switch with Gigabit uplinks.This model has 24x 10/100 ports. Additionally the switch has two 10/100/1000 ports and two dedicated Gigabit SFP ports.Ports(24) RJ-45 autosensing 10/100 ports(2) autosensing 10/100/1000 ports(2) fixed Gigabit Ethernet SFP portsMemory and processorARM9E @ 800 MHz128 MB flashPacket buffer size: 1.5 MB dynamically allocated256 MB DDR3 DIMMLatency100 Mb Latency: < 1.7 µs1000 Mb Latency: < 1.1 µsThroughputup to 9.5 MppsSwitching capacity12.8 GbpsStacking capabilitiesVirtual16 switchesManagement featuresAruba Central and Aruba AirWave Network ManagementIMC—Intelligent Management Centercommand-line interfaceWeb browserconfiguration menuout-of-band management (serial RS-232C or Micro USB)IEEE 802.3 Ethernet MIBRepeater MIBEthernet Interface MIB AirWave Network ManagementInput voltage100 - 127 / 200 - 240 VAC, ratedPower consumption14.7 W (maximum)Heat dissipation50 BTU/hr (52.75 kJ/hr)Minimum dimensions ( H x W x D)44.2 x 24.64 x 4.45 cmWeightCÔNG TY TNHH CÔNG NGHỆ THÔNG TIN HMHĐịa Chỉ: 8 Bàu Cát 5, Phường 14, Quận Tân Bình, Thành phố Hồ Chí Minh, Việt NamHotline: 0985.938.004 (Mr. Huy)Email: huyhm@hmhvn.com.vnWebsite: www.hmhvn.com.vn
Sản phẩm liên quan
-
0₫HPE Aruba 2530 24 PoE+ Switch - J9779ATechnical SpecificationsDifferentiator24-port fully managed Fast Ethernet PoE+ switch with Gigabit uplinks.This model has 24x 10/100 PoE+ ports with a power budget of 195W. Additionally the switch has two 10/100/1000 ports and two dedicated Gigabit SFP ports.Ports(24) RJ-45 autosensing 10/100 PoE+ ports(2) autosensing 10/100/1000 ports(2) fixed Gigabit Ethernet SFP...
-
0₫HPE Aruba 2530 24G PoE+ 2SFP+ Switch - J9854ASpecificationsI/O ports and slots24 RJ-45 autosensing 10/100/1000 PoE+ ports (IEEE 802.3 type 10BASET,IEEE 802.3u type 100BASE-TX, IEEE 802.3ab type 1000BASE-T, IEEE802.3at PoE+)Media type: Auto-MDIXDuplex: 10BASE-T/100BASE-TX: Half or full1000BASE-T: Full onlySFP+ fixed 1000/10000 SFP+ portsAdditional ports and slots1 Dual-Personality (RJ-45 or USB Micro-B) serial console portMemory and processorARM9E...
-
0₫HPE Aruba 2530 24G PoE+ Switch - J9773ATechnical SpecificationsDifferentiatorCost-effective 28-port fully managed Gigabit Layer 2 PoE+ switch.This model has 24x 10/100/1000 PoE+ enabled ports and four Gigabit SFP ports. Supports IEEE 802.3at Power over Ethernet with a PoE power budget of 195 Watts.Ports(24) RJ-45 autosensing 10/100/1000 PoE+ ports(4) fixed Gigabit Ethernet SFP portsMemory and processorARM9E...
-
0₫HPE Aruba 2530 24G Switch - J9776ATechnical SpecificationsDifferentiatorCost-effective 28-port fully managed Gigabit Layer 2 switch.This model has 24x 10/100/1000 ports and four Gigabit SFP ports.Ports(24) RJ-45 autosensing 10/100/1000 ports(4) fixed Gigabit Ethernet SFP portsMemory and processorARM9E @ 800 MHz128 MB flashPacket buffer size: 1.5 MB dynamically allocated256 MB DDR3 DIMMLatency100 Mb Latency: < 7.4 µs1000...
-
0₫HPE Aruba 2530 48 PoE+ Switch - J9778ATechnical SpecificationsDifferentiatorHigh density fully managed 48 port Fast Ethernet PoE+ access switch with Gigabit uplinks.This model has 48x 10/100 PoE+ ports with a power budget of 382W. Additionally the switch has two 10/100/1000 ports and two dedicated Gigabit SFP ports.Ports(48) RJ-45 autosensing 10/100 PoE+ ports(2) autosensing 10/100/1000 ports(2) fixed Gigabit...
Mô tả sản phẩm
Technical Specifications
Differentiator
24-port fully managed Fast Ethernet switch with Gigabit uplinks.
This model has 24x 10/100 ports. Additionally the switch has two 10/100/1000 ports and two dedicated Gigabit SFP ports.
Ports
(24) RJ-45 autosensing 10/100 ports
(2) autosensing 10/100/1000 ports
(2) fixed Gigabit Ethernet SFP ports
Memory and processor
ARM9E @ 800 MHz
128 MB flash
Packet buffer size: 1.5 MB dynamically allocated
256 MB DDR3 DIMM
Latency
100 Mb Latency: < 1.7 µs
1000 Mb Latency: < 1.1 µs
Throughput
up to 9.5 Mpps
Switching capacity
12.8 Gbps
Stacking capabilities
Virtual
16 switches
Management features
Aruba Central and Aruba AirWave Network Management
IMC—Intelligent Management Center
command-line interface
Web browser
configuration menu
out-of-band management (serial RS-232C or Micro USB)
IEEE 802.3 Ethernet MIB
Repeater MIB
Ethernet Interface MIB AirWave Network Management
Input voltage
100 - 127 / 200 - 240 VAC, rated
Power consumption
14.7 W (maximum)
Heat dissipation
50 BTU/hr (52.75 kJ/hr)
Minimum dimensions ( H x W x D)
44.2 x 24.64 x 4.45 cm
Weight
