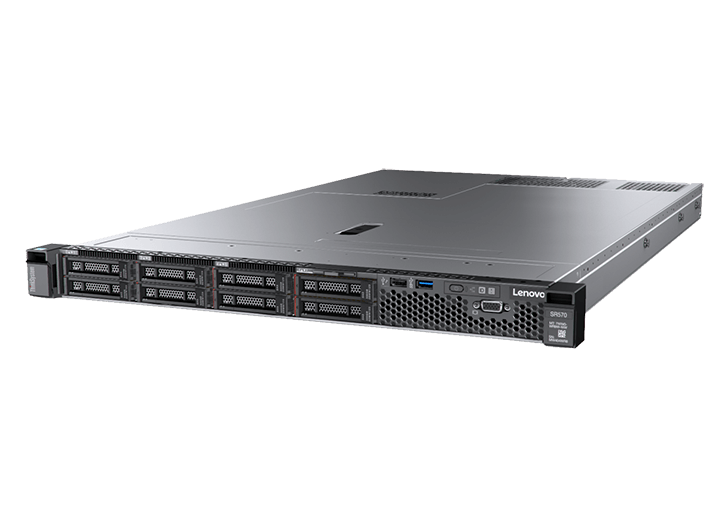

Máy chủ Lenovo ThinkSystem SR530, Silver 4114, Ram 8GB, 8x 2.5"

0₫

(Còn hàng)

Máy chủ Lenovo ThinkSystem SR530, Silver 4114, Ram 8GB, 8x 2.5"- Processors : 1x Intel Xeon Silver 4114 (10C/2.2GHz/13.75MB/85W)- Memory : 1x 8GB RDIMM DDR4-2666 - Hard Drives : Option - Drive Bays : 8x 2.5" SATA/SAS HS- Raid Controller : 1x 530-8i (SAS, SATA, Raid 0, 1, 10, 5, 50) - Network Controller : 2x 1GbE ports + 1x dedicated 1GbE management port (std); 1x opt. 10GbE LOM- PCI-Express Slots : 1x LP x8/1x LP x16- Optical Drive : No internal optical bay. Optional USB DVD±RW optical drive- Graphics : Integrated Matrox G200 in XClarity Controller - Powe Supply : 1x 550W Platinum - Rail Kit : 1U Rail Kit - Form Factor : 1U Rack Tech SpecsForm Factor/Height:  1U RackProcessor (max)/Cache (max):  Up to 2x Intel® Xeon® Platinum processors, up to 125WMemory:  Up to 768GB in 12x slots, using 64GB DIMMs 2666MHz TruDDR4Expansion Slots:  Up to 3x PCIe 3.0, via multiple riser options (either all-PCIe, or PCIe and ML2)Drive Bays: Up to 8 bays. SFF: 8x HS SAS/SATA; or LFF: 4x HS SAS/SATA; or 4x simple-swap (SS) SATA; PLUS up to 2x mirrored M.2 boot (opt. RAID 1)HBA/RAID Support:  Software RAID std. (up to 8 ports); opt. hardware RAID (up to 8 ports) with flash cache;...

Sản phẩm liên quan

Mô tả sản phẩm

Máy chủ Lenovo ThinkSystem SR530, Silver 4114, Ram 8GB, 8x 2.5"

- Processors : 1x Intel Xeon Silver 4114 (10C/2.2GHz/13.75MB/85W)
- Memory : 1x 8GB RDIMM DDR4-2666
- Hard Drives : Option
- Drive Bays : 8x 2.5" SATA/SAS HS
- Raid Controller : 1x 530-8i (SAS, SATA, Raid 0, 1, 10, 5, 50)
- Network Controller : 2x 1GbE ports + 1x dedicated 1GbE management port (std); 1x opt. 10GbE LOM
- PCI-Express Slots : 1x LP x8/1x LP x16
- Optical Drive : No internal optical bay. Optional USB DVD±RW optical drive
- Graphics : Integrated Matrox G200 in XClarity Controller
- Powe Supply : 1x 550W Platinum
- Rail Kit : 1U Rail Kit
- Form Factor : 1U Rack


Tech Specs

Form Factor/Height:  1U Rack

Processor (max)/Cache (max):  Up to 2x Intel® Xeon® Platinum processors, up to 125W

Memory:  Up to 768GB in 12x slots, using 64GB DIMMs 2666MHz TruDDR4

Expansion Slots:  Up to 3x PCIe 3.0, via multiple riser options (either all-PCIe, or PCIe and ML2)

Drive Bays: Up to 8 bays. SFF: 8x HS SAS/SATA; or LFF: 4x HS SAS/SATA; or 4x simple-swap (SS) SATA; PLUS up to 2x mirrored M.2 boot (opt. RAID 1)

HBA/RAID Support:  Software RAID std. (up to 8 ports); opt. hardware RAID (up to 8 ports) with flash cache; up to 8-port HBAs

Security and Availability Features:  TPM 1.2/2.0; PFA; HS/redundant drives and PSUs; operating temp up to 45°C (with limitations); front-access diagnostics via dedicated USB port

Network Interface:  2x 1GbE ports + 1x dedicated 1GbE management port (std); optional modular LOM supports 2x 1GbE Base-T or 2x 10GbE with Base-T or SFP+

Power:  2x hot-swap/redundant (Energy Star 2.1): 550W/750W 80 PLUS Platinum; or 750W 80 PLUS Titanium

Systems Management:   XClarity Controller embedded management, XClarity Administrator centralized infrastructure delivery, XClarity Integrator plugins, and XClarity Energy Manager centralized server power management

Operating Systems Supported:  Microsoft Windows Server, SLES, RHEL, VMware vSphere. Visit lenovopress.com/osig for details.
