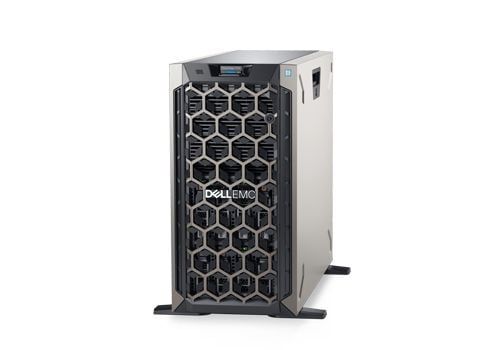

Máy chủ Dell PowerEdge T340, E-2174G, Ram 8GB, 8x3.5"

0₫

Mô tả

Máy chủ Dell PowerEdge T340, E-2174G, Ram 8GB, 8x3.5"

- Processors : 1x Intel® Xeon® Processor E-2174G (4C, 3.80 GHz)

- Memory : 1x8GB DDR4 2666 MT/s
- Hard Drives : Option HDD
- Drive Bays : 8 x 3.5" bays
- Raid Controller : PERC H330
- Network Controller: BC5720DP LOM
- Optical Drive: DVD+/-RW
- Powe Supply : 1x 495W
- Form Factor : Tower


Tech Specs

Processor
1 processor from the following:

Intel® Xeon® E-2100 product family,
Intel Pentium®,
Intel Core i3®,
Intel Celeron®

Bezel
Optional security bezel

Chassis
Tower server

Chipset
Intel C246

Dimensions & Weight
Height: 430.3 mm (16.94")
Width: 218 mm (8.58")
Depth: 603 mm (23.7")

Drive Bays
Up to 8 x 3.5" hot-pluggable bays (also supports 2.5” HDD in 3.5” hybrid drive carrier)

Memory
4x DDR4 DIMM slots, supports UDIMMs, speeds up to 2666MT/s, 64GB max. supports registered ECC.

Management
Embedded / At-the-Server
iDRAC9 with Lifecycle Controller
iDRAC Direct
iDRAC RESTful API with Redfish

Consoles
OpenManage Enterprise
OpenManage Essentials
OpenManage Power Center

Mobility
OpenManage Mobile (requires OM Enterprise or OM Essentials)

Tools
iDRAC Service Module
OpenManage Server Administrator
Dell EMC Repository Manager
Dell EMC System Update
Dell EMC Server Update Utility
Dell EMC Update Catalogs
Dell EMC RACADM CLI
IPMI Tool

OpenManage Integrations
Microsoft® System Center
VMware® vCenter™
BMC Truesight (available from BMC)
Red Hat Ansible

OpenManage Connections
Nagios Core & Nagios XI
Micro Focus
Operations Manager i (OMi)
IBM Tivoli Netcool/OMNIbus

Network Controller
2 X 1GbE LOM

Ports
Front panel: 1x USB 3.0, 1x iDRAC micro USB 2.0 management port
Back panel: 2x USB 3.0, 4x USB 2.0, VGA, serial connector
Internal USB: 1x internal USB 3.0

Power Supplies
2x Hot-Plug-Redundant 495W PSUs
or Single Cabled 350W PSU

Slots
4 x PCIe Slots:
1x8 Gen3 (x16 connector) FH/HL
1x8 Gen3 (x8 connector) FH/HL
1x4 Gen3 (x8 connector) FH/HL
1x1 Gen3 (x1 connector) FH/HL

Supported Operating Systems
Microsoft Windows Server® with Hyper-V
Red Hat® Enterprise Linux
SUSE® Linux Enterprise Server
VMware® ESXi
Citrix® XenServer®
Ubuntu Server
Certify XenServer

Storage
2.5” SATA 7.2K
2.5” Near Line SAS 7.2K
2.5” SAS 10K HDDs
2.5” SAS 15K HDDs
3.5” Enterprise SATA 7.2K HDDs
3.5” Near Line SAS 7.2K HDDs
2.5” SATA SSDs
Note: SSDs are only available in the hot-plug configuration

Storage Controllers
Internal controllers: PERC H730P, H330, HBA330 (non-RAID)
Software RAID: PERC S140
External HBAs: 12Gbps SAS HBA (non-RAID)
Boot Optimized Storage Subsystem: 2x M.2 240GB (RAID 1 or No RAID), 1x M.2 240GB (No RAID only)
