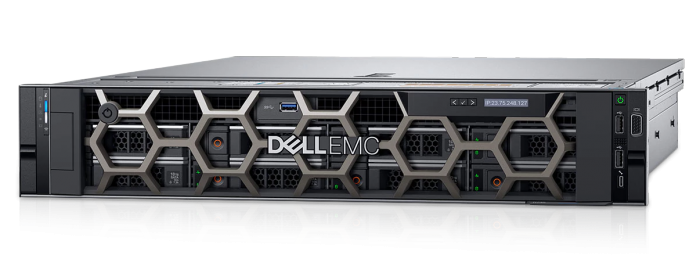

Máy chủ Dell PowerEdge R740, Silver 4110, Ram 16GB, 2x 4TB

0₫

Mô tả

Máy chủ Dell PowerEdge R740, Silver 4110, Ram 32GB, 2x 4TB

- Processors : 1x Intel Xeon Silver 4110 (2.1G, 8C/16T, 9.6GT/s, 11M Cache, Turbo, HT (85W)
- Memory : 2 x 16GB RDIMM, 2666MT/s, Dual Rank,CK
- Hard Drives : 2x 4TB NLSAS 7.2K 3.5" HDD
- Drive Bays : 8 x 3.5” SAS/SATA/SSD,
- Raid Controller : H730P RAID Controller 2GB NV Cache RAID levels 0, 1, 5, 6
- Network Controller: 4 x 1GE BC5720
- Optical Drive: DVD+/-RW SATA Internal
- Powe Supply : 2x 750W redundant PSUs
- Form Factor : Rack 2U


Tech Specs & Customization

Processor
Up to two Intel® Xeon® Scalable processors, up to 28 cores per processor

Operating System
Canonical® Ubuntu® LTS Citrix® XenServer®
Microsoft Windows Server® with Hyper-V Red Hat® Enterprise Linux
SUSE® Linux Enterprise Server VMware® ESXi

Memory
24 DDR4 DIMM slots, Supports RDIMM /LRDIMM, speeds up to 2666, 3TB max
Up to 12 NVDIMM, 192 GB Max
Supports registered ECC DDR4 DIMMs only

Storage Controllers
Internal controllers:
PERC H330, H730p, H740p, Software RAID (SWRAID) S140

Boot Optimized Storage Subsystem:
HWRAID 2 x M.2 SSDs 120GB, 240 GB
External PERC (RAID): H840
12Gbps SAS HBAs (non-RAID):
External- 12Gbps SAS HBA (non-RAID)
Internal- HBA330 (non-RAID)

Drive Bays
Front drive bays:
Up to 16 x 2.5” SAS/SATA/SSD, max 60TB
Up to 8 x 3.5” SAS/SATA, max 96TB

Form factor:
Rack (2U)

Data Protection
TPM 1.2/2.0 optional Cryptographically signed firmware
Secure Boot
System Lockdown
Secure erase

Ports

Network daughter card options:
4 x 1GE or 2 x 10GE + 2 x 1GE or 4 x 10GE or 2 x 25GE

Front ports:
Video, 2 x USB 2.0, available USB 3.0, dedicated IDRAC

Direct Micro-USB Rear ports:
Video, serial, 2 x USB 3.0, dedicated iDRAC network port
Video card: VGA

PCIe:
Up to 8 x Gen3 slots, Up to 4 x16

Power
Titanium 750W, Platinum 495W, 750W, 1100W, 1600W, and 2000W
48VDC 1100W, 380HVDC 1100W, 240HVDC 750W (China/Japan)
Hot plug power supplies with full redundancy Up to 6 hot plugs fans with full redundancy High performance fans available

Management
Embedded / At-the-Server
iDRAC9 with Lifecycle Controller (Express, Enterprise)
iDRAC Direct
iDRAC REST API with Redfish
Quick Sync 2 BLE/wireless module

Consoles
OpenManage Enterprise
OpenManage Essentials
OpenManage Power Center

Mobility
OpenManage Mobile

Tools
iDRAC Service Module
OpenManage Server Administrator
OpenManage Storage Services
Dell EMC Repository Manager
Dell EMC System Update
Dell EMC Server Update Utility
Dell EMC Update Catalogs

OpenManage Integrations
Microsoft® System Center
VMware® vCenter™
BMC software (available from BMC)

OpenManage Connections
Nagios Core and Nagios XI
HPE Operations Manager i (OMi)
IBM Tivoli® Netcool/OMNIbus
IBM Tivoli® Network Manager IP Edition

GPU
Accelerator options:
Nvidia Tesla P100, K80, K40, Grid M60, M10, P4, Quadro P4000, NVIDIA V100, or Intel Arria® 10GX FPGA
