Processor Up to two Intel® Xeon® Scalable processors, up to 20 cores per processor Form factor: 2U
Chassis depth Max depth: 707.74 mm (w/bezel) Max depth: 693.81 mm (w/o bezel) Drive Bays Front drive bays: Up to 12 x 3.5” SAS/SATA HDD max 120TB Rear drive bays: Up to 2 x 3.5 SAS/SATA HDD Optional DVD-ROM, DVD+RW
Fans Hot plug power supplies with full redundancy option I/O and Ports Network options 2 x 1GE LOM (optional) OCP 2 x 10GE SFP+ or BaseT or 2 x 1GE
Front ports Video, 1 x USB 2.0, dedicated IDRAC Direct USB
Rear ports Video, serial, 2 x USB 3.0, dedicated iDRAC network port
PCIe Non rear storage config: 1 x FH/FL + 1 x HH/HL (2U Right riser) slots + 3HH/HL slots Rear storage config: 1 x HH/HL (1U Left Riser) + 1 x HH/HL (1U Right risers) slot or 1 x HH/HL (1U Left Riser) + 1 x FH/HL (1U Right riser)
Memory 16 DDR4 DIMM slots, Supports RDIMM /LRDIMM, speeds up to 2666, 512GB max Management Embedded / At-Server iDRAC9 with Lifecycle Controller (Express, Enterprise) iDRAC Direct iDRAC REST API with Redfish Quick Sync 2 BLE/wireless module
Consoles OpenManage Enterprise OpenManage Essentials OpenManage Power Center Mobility OpenManage Mobile
Tools iDRAC Service Module OpenManage Server Administrator OpenManage Storage Services Dell Repository Manager Dell System Update Dell Server Update Utility Dell Update Catalogs
OpenManage Integrations Microsoft® Systems Center VMware® vCenter™ BMC software (available from BMC)
Power Supplies Titanium 750W, Platinum 495W, 750W, and 1100W, 240HVDC 750W
Recommended Support Dell ProSupport Plus for critical systems or Dell ProSupport for premium hardware and software support for your PowerEdge solution. Consulting and deployment offerings are also available. Contact your Dell representative today for more information
Security TPM 1.2/2.0 optional Cryptographically signed firmware Secure Boot System Lockdown Secure erase Supported Operating Systems Canonical® Ubuntu® LTS Citrix® XenServer® Microsoft Windows Server® with Hyper-V Red Hat® Enterprise Linux SUSE® Linux Enterprise Server VMware® ESXi
Mô tả

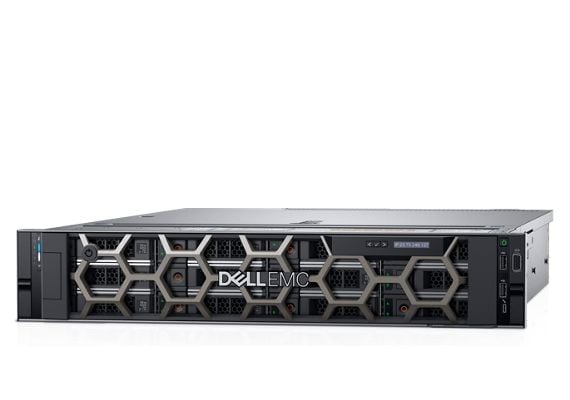

Máy chủ Dell PowerEdge R540, Silver 4110, Ram 16GB, 2x 4TB
- Processors : 1x Intel Xeon Silver 4110 (2.1G, 8C/16T, 9.6GT/s, 11M Cache, Turbo, HT (85W))
- Memory : 1x Dell 16GB RDIMM, 2666MT/s, Dual Rank,CK
- Hard Drives : 2x 4TB NLSAS 7.2K 3.5" HDD
- Drive Bays : 8 x 3.5” SAS/SATA
- Raid Controller : PERC H730P
- Network Controller: 2 x 1GE LOM
- Optical Drive: DVD RW
- Powe Supply : 1x 750W redundant PSUs
- Form Factor : Rack 2U
Tech Specs & Customization
Processor
Up to two Intel® Xeon® Scalable processors, up to 20 cores per processor
Form factor: 2U
Chassis depth
Max depth: 707.74 mm (w/bezel)
Max depth: 693.81 mm (w/o bezel)
Drive Bays
Front drive bays: Up to 12 x 3.5” SAS/SATA HDD max 120TB
Rear drive bays: Up to 2 x 3.5 SAS/SATA HDD
Optional DVD-ROM, DVD+RW
Embedded Management
IPMI 2.0 compliant
iDRAC9 with Lifecycle Controller (Basic, Express, Enterprise)
Quick Sync 2 wireless module optional
Fans
Hot plug power supplies with full redundancy option
I/O and Ports
Network options
2 x 1GE LOM
(optional) OCP 2 x 10GE SFP+ or BaseT or 2 x 1GE
Front ports
Video, 1 x USB 2.0, dedicated IDRAC Direct USB
Rear ports
Video, serial, 2 x USB 3.0, dedicated iDRAC network port
PCIe
Non rear storage config:
1 x FH/FL + 1 x HH/HL (2U Right riser) slots + 3HH/HL slots
Rear storage config:
1 x HH/HL (1U Left Riser) + 1 x HH/HL (1U Right risers) slot or 1 x HH/HL (1U Left Riser) + 1 x FH/HL (1U Right riser)
Memory
16 DDR4 DIMM slots, Supports RDIMM /LRDIMM, speeds up to 2666, 512GB max
Management
Embedded / At-Server
iDRAC9 with Lifecycle Controller (Express, Enterprise)
iDRAC Direct
iDRAC REST API with Redfish
Quick Sync 2 BLE/wireless module
Consoles
OpenManage Enterprise
OpenManage Essentials
OpenManage Power Center
Mobility
OpenManage Mobile
Tools
iDRAC Service Module
OpenManage Server Administrator
OpenManage Storage Services
Dell Repository Manager
Dell System Update
Dell Server Update Utility
Dell Update Catalogs
OpenManage Integrations
Microsoft® Systems Center
VMware® vCenter™
BMC software (available from BMC)
Power Supplies
Titanium 750W, Platinum 495W, 750W, and 1100W, 240HVDC 750W
Recommended Support
Dell ProSupport Plus for critical systems or Dell ProSupport for premium hardware and software support for your PowerEdge solution. Consulting and deployment offerings are also available. Contact your Dell representative today for more information
Security
TPM 1.2/2.0 optional
Cryptographically signed firmware
Secure Boot
System Lockdown
Secure erase
Supported Operating Systems
Canonical® Ubuntu® LTS
Citrix® XenServer®
Microsoft Windows Server® with Hyper-V
Red Hat® Enterprise Linux
SUSE® Linux Enterprise Server
VMware® ESXi
Storage Controllers
Internal controllers: PERC H330, H730p, H740p, HBA330, Software RAID (SWRAID) S140
Boot Optimized Storage Subsystem: HWRAID 2 x M.2 SSDs 120GB, 240 GB
