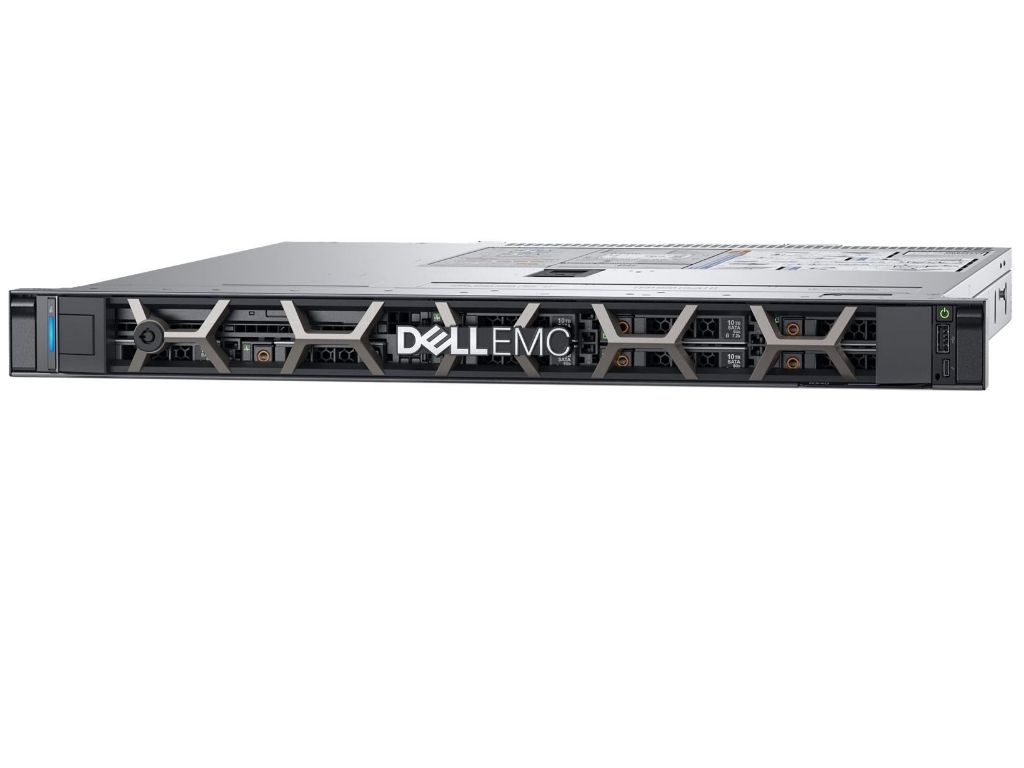

Máy chủ Dell PowerEdge R340, E-2124, Ram 8GB, 4x3.5", PERC H330

0₫

(Còn hàng)

Máy chủ Dell PowerEdge R340, E-2124, Ram 8GB, 4x3.5", PERC H330- Processors : 1x Intel® Xeon® Processor E-2124 (4C, 3.30 GHz)- Memory : 1x 8GB DDR4 2666 MT/s- Hard Drives : Option HDD- Drive Bays : 4 x 3.5" bays - Raid Controller: PERC H330- Network Controller: BC5720DP LOM- Optical Drive: DVD+/-RW - Powe Supply : 350W- Form Factor : TowerTech Specs Processor1 processor from the following:Intel® Xeon® E-2100 product family,Intel Pentium®,Intel Core i3®,Intel Celeron®BezelOptional security bezelChassisForm Factor: Rack (1U)Dimensions:Chassis width: 434.00mm (17.08") Chassis depth: 595.63mm (23.45") (3.5" HHD config)Chassis depth: 544.836mm (21.45") (2.5" HHD config)Note: These dimensions do not include: bezel, redundant PSUChassis weight: 13.6 kg (29.98 lb)Hard Drive ConfigurationUp to 8 x 2.5 hot-plug SAS, SATA, or SSD*Up to 4 x 3.5 cabled SAS, SATA, or SSD*MemoryDIMM Speed: Up to 2666MT/s DDR4 DIMMsMemory Type: UDIMMsMemory Module Slots: 4Maximum RAM: Up to 64GBManagementEmbedded / At-the-ServeriDRAC9 with Lifecycle ControlleriDRAC DirectiDRAC RESTful API with RedfishConsolesOpenManage EnterpriseOpenManage EssentialsOpenManage Power CenterMobilityOpenManage MobileToolsiDRAC Service ModuleOpenManage Server AdministratorDell EMC Repository ManagerDell EMC System UpdateDell EMC Server Update UtilityDell EMC Update CatalogsDell EMC RACADM CLIIPMI ToolOpenManage IntegrationsMicrosoft® System CenterVMware® vCenter™BMC Truesight (available from BMC)Red Hat AnsibleOpenManage ConnectionsNagios Core & Nagios XIMicro Focus Operations Manager i (OMi)IBM Tivoli Netcool/OMNIbusNetwork Controller2 x 1GbE...

Sản phẩm liên quan

Mô tả sản phẩm

Máy chủ Dell PowerEdge R340, E-2124, Ram 8GB, 4x3.5", PERC H330

- Processors : 1x Intel® Xeon® Processor E-2124 (4C, 3.30 GHz)

- Memory : 1x 8GB DDR4 2666 MT/s
- Hard Drives : Option HDD
- Drive Bays : 4 x 3.5" bays
- Raid Controller: PERC H330
- Network Controller: BC5720DP LOM
- Optical Drive: DVD+/-RW
- Powe Supply : 350W
- Form Factor : Tower



Tech Specs

Processor
1 processor from the following:
Intel® Xeon® E-2100 product family,
Intel Pentium®,
Intel Core i3®,
Intel Celeron®

Bezel
Optional security bezel

Chassis
Form Factor: Rack (1U)

Dimensions:
Chassis width: 434.00mm (17.08")
Chassis depth: 595.63mm (23.45") (3.5" HHD config)
Chassis depth: 544.836mm (21.45") (2.5" HHD config)
Note: These dimensions do not include: bezel, redundant PSU
Chassis weight: 13.6 kg (29.98 lb)

Hard Drive Configuration
Up to 8 x 2.5 hot-plug SAS, SATA, or SSD*
Up to 4 x 3.5 cabled SAS, SATA, or SSD*

Memory
DIMM Speed: Up to 2666MT/s DDR4 DIMMs
Memory Type: UDIMMs
Memory Module Slots: 4
Maximum RAM: Up to 64GB

Management
Embedded / At-the-Server
iDRAC9 with Lifecycle Controller
iDRAC Direct
iDRAC RESTful API with Redfish

Consoles
OpenManage Enterprise
OpenManage Essentials
OpenManage Power Center

Mobility
OpenManage Mobile

Tools
iDRAC Service Module
OpenManage Server Administrator
Dell EMC Repository Manager
Dell EMC System Update
Dell EMC Server Update Utility
Dell EMC Update Catalogs
Dell EMC RACADM CLI

IPMI Tool
OpenManage Integrations
Microsoft® System Center
VMware® vCenter™
BMC Truesight (available from BMC)
Red Hat Ansible

OpenManage Connections
Nagios Core & Nagios XI
Micro Focus Operations Manager i (OMi)
IBM Tivoli Netcool/OMNIbus

Network Controller
2 x 1GbE LOM Network Interface Controller (NIC) ports

Ports
Front:
One USB 2.0
Micro USB 2.0 compliant for iDRAC Direct
Rear:
Two USB 3.0
VGASerial connector

Internal port:
One USB 3.0

Power Supplies
Single or dual 350W or 550W hot-plug redundant power supplies

I/O Expansion Slots
2 x PCIe Gen 3.0 slots

One x8 slot low-profile, half length with x4 slot width
One x16 slot low-profile/full-height, half length with x8 bandwith

Supported Operating Systems
Microsoft Windows Server® with Hyper-V
Red Hat® Enterprise Linux
SUSE® Linux Enterprise Server
VMware® ESXi
Citrix® XenServer®
Ubuntu Server
Certify XenServer

Storage Controllers
Internal controllers: PERC H730P, H330, HBA330 (non-RAID)
Software RAID: PERC S140
External HBAs: 12Gbps SAS HBA (non-RAID)
Boot Optimized Storage Subsystem: 2x M.2 240GB (RAID 1 or No RAID), 1x M.2 240GB (No RAID only)
