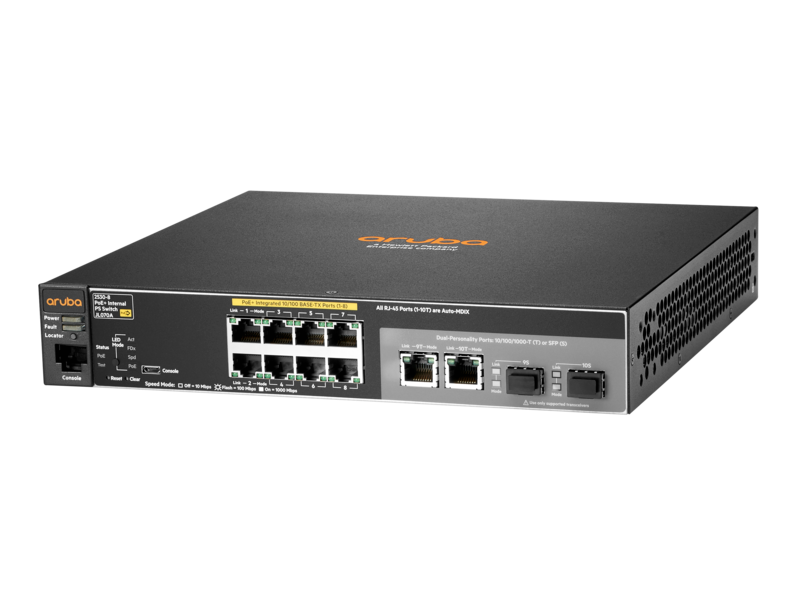

HPE Aruba 2530 8 PoE+ Switch - J9J9780A780A

0₫

Mô tả

HPE Aruba 2530 8 PoE+ Switch - J9780A

Technical Specifications

Differentiator
Compact fully managed Fast Ethernet PoE+ switch with 8x 10/100 ports and 2x Gigabit combo ports. External power adapter.
This model has 8x 10/100 PoE+ ports with a power budget of 67W. Additionally the switch has two combo dual personality ports that operate at 10/100/1000 or as Gigabit SFP ports. Uses an external power adapter.

Ports
(8) RJ-45 autosensing 10/100 PoE+ ports
(2) dual-personality ports - each port can be used as either an RJ-45 10/100/1000 port (IEEE 802.3 Type 10Base-T
IEEE 802.3u Type 100Base-Tx
IEEE 802.3ab 1000Base-T Gigabit Ethernet) or as a SFP slot (for use with SFP transceivers) ports

Memory and processor
ARM9E @ 800 MHz
128 MB flash
Packet buffer size: 1.5 MB dynamically allocated
256 MB DDR3 DIMM

Latency
100 Mb Latency: < 1.3 µs
1000 Mb Latency: < 1.3 µs

Throughput
up to 4.1 Mpps

Switching capacity
5.6 Gbps

PoE capability
67 W

Stacking capabilities
Virtual
16 switches

Management features
Aruba Central and Aruba AirWave Network Management
IMC—Intelligent Management Center
command-line interface
Web browser
configuration menu
out-of-band management (serial RS-232C or Micro USB)
IEEE 802.3 Ethernet MIB
Repeater MIB
Ethernet Interface MIB AirWave Network Management

Input voltage
100 - 127 / 200 - 240 VAC, rated

Power consumption
76.7 W (maximum)

Heat dissipation
29 BTU/hr (30.6 kJ/hr)

Minimum dimensions ( H x W x D)
25.4 x 15.95 x 4.45 cm

Weight
0.91 kg
